Loading Checklist

Please fill in all the points below (checkpoint and filling points) to get a Ticket Number that you are able to get the Inspection Certificate from V-Trust for LC requirement.

Contact Data

Contact Data *

Name

Company Name

Company Address

Company Address + Housenumber *

ZIP *

City *

Country *

Telephone Number

E-Mail Address

ITEM DESCRIPTION

Item Description *

ITEM

PO Number

RUNNING CARTONS No.

CBM

CONTAINERNUMBER

CONTAINER SEAL NO

Please mention the CONTAINER SEAL NO.

Container Size

20”
40”
40” HQ

CONTAINER trucked / operated by supplier and shipped to forwarder of buyer

YesNo

FCL CONTAINER LOADING

FCL CONTAINER LOADING *

1. FCL CONTAINER LOADING

a) Container operative Check

You have to send Shipping Order (S/O) to forwarder urgently.
You have to arrange containers by yourself and bring to forwarder on time.
Be sure that you order containers only in good condition and from reputated companies and not any damaged or just cheap in low quality with risk that container is defected. (cracks, holes, …) (see loading checklist).

Who handles the local operatives?

Container to forwarder

Will you bring the container to forwarder or you get empty container from forwarder?

b. Empty Container Check

The container is suitable to load the goods.
No holes, cracks or deformations present in container walls or roof.
The nut on the inner wall of container door should not be missed or loosen, specially the nut on the third bar of the container door which V-Trust seal will lock on (use a wrench to screw the nut, the nut can’t become loosen by itself, the nut should be turned round with the bolt together).
Doors operate properly and closing devices operate properly.
Same container number present on door and the inside and outside of container.
Container is watertight. Test method: enter container, wipe up any rust (if any), close both doors tightly and look for incoming light (e.g. through cracks, holes, door gaskets, edge of door etc.).
Container interior is absolutely dry, clean, free of cargo residues and neutral in odor (Old adhesive labels have been removed.). Wipe up any condensation or white frost in order to avoid corrosion and moisture damage to the cargo.
No nails or other protrusions which could damage the cargo.

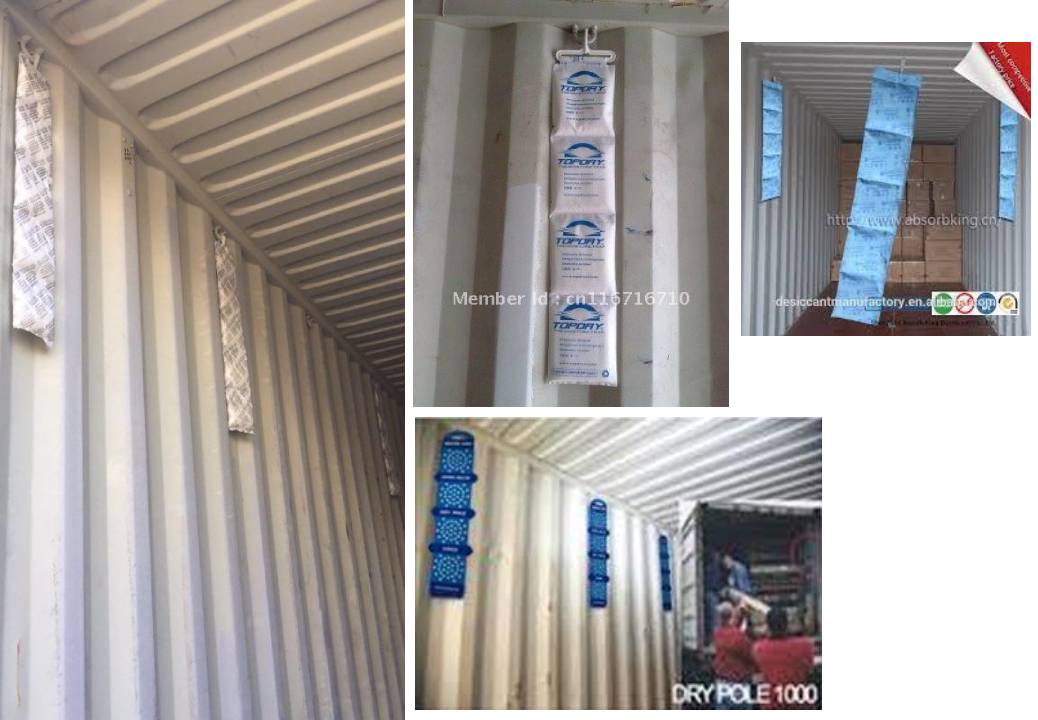

c. Desiccant Bags

All containers must be equiped inside with Desiccant Bags on each side (inside container
1 bag each 2m = if container 10m length – 6-8 bags each sides) – like picture

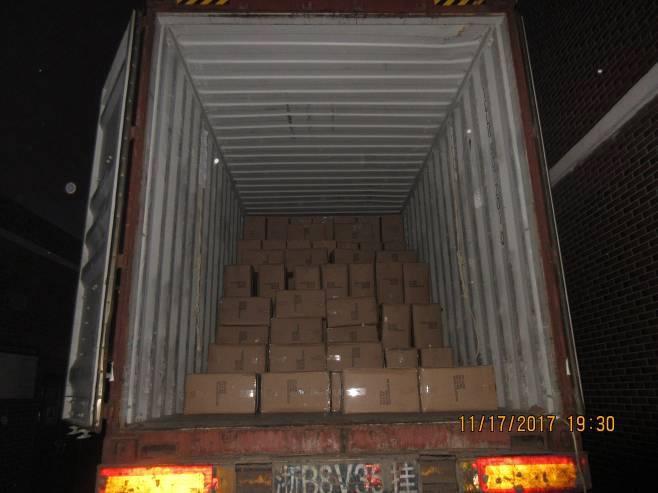

d. No “steef clips”

No “steef clips” at both ends of container to avoid cartons falling down – NOT LIKE THIS
PIC!!

Container must be fully loaded with cartons and by the door the cartons must be fixed also with a rope that by opening the door, the cartons don’t fall out of container.
If container not fully loaded and less then half empty then on the backside the container must be filled with some stuff (cardboard, rope, …) that the cartons don’t move inside container and tilt inside container.

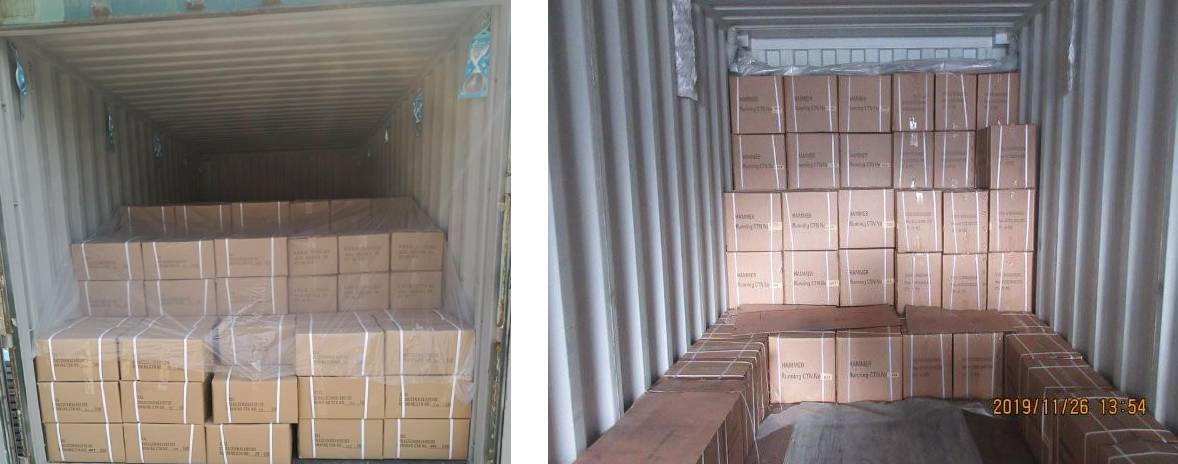

e. PVC FOIL on top of all cartons

Begin to put the foil from the back of container on top of the cartons and spread the foil till the front door. Don’t load first the cartons and then the foil.
START FROM BACK TILL FRONT. Load the cartons with the foil together from back till front!!!

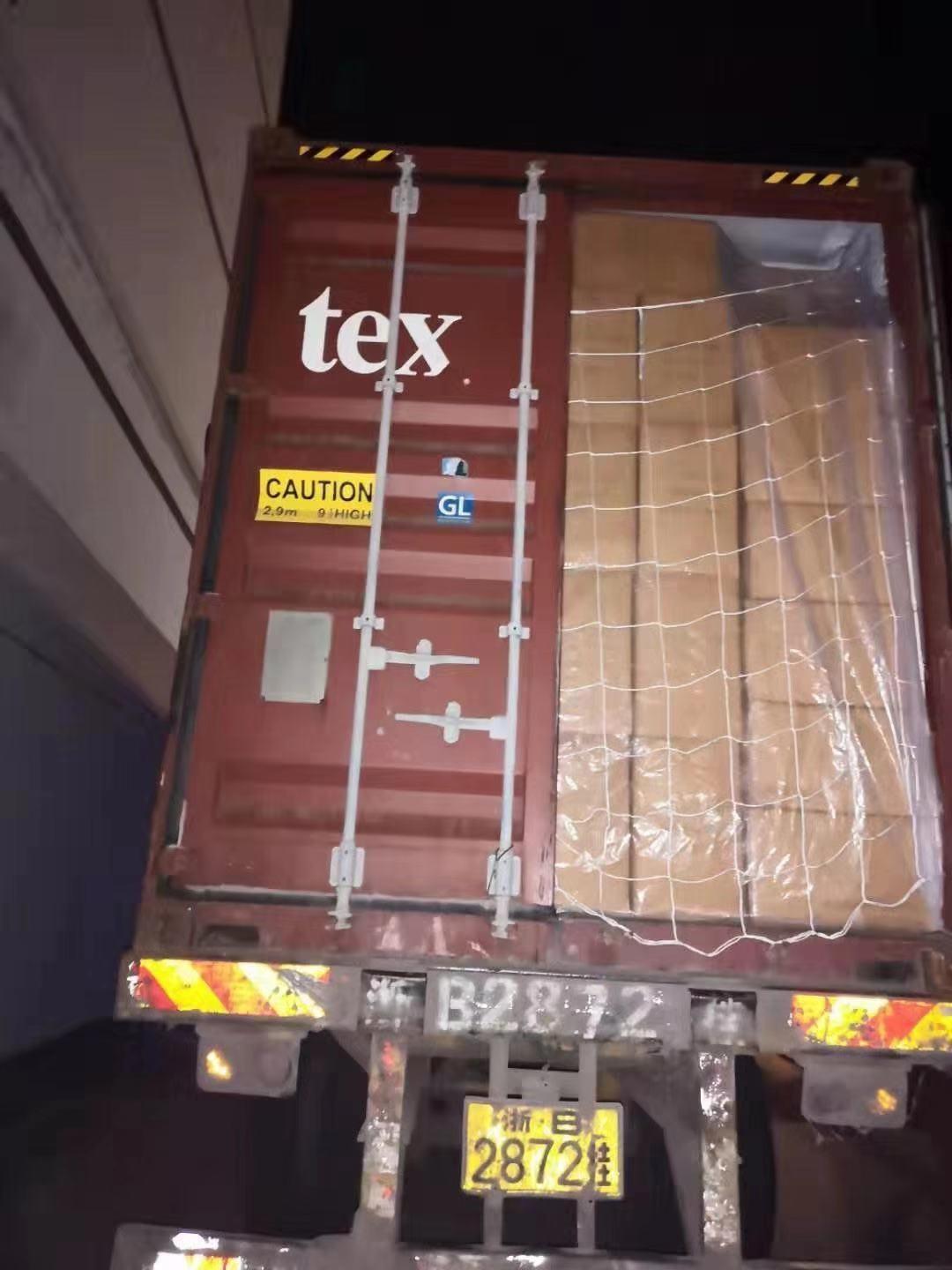

f. Mesh Net Bag

Mesh Net Bag at front of container at the door to save the boxes from falling down.

LCL Loading Instructions

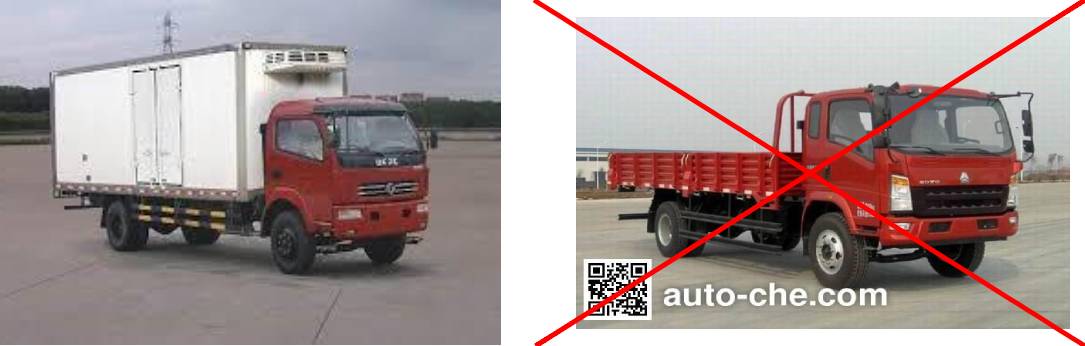

It’s very important that goods are sent to forwarder in a closed truck from all sides and not topless truck
to avoid wet cartons!! Please send us pictures for this as well.

FCL CONTAINER LOADING – Check

I have read and understood the instructions.

YesNo

CARTON PACKING

Carton Packing *

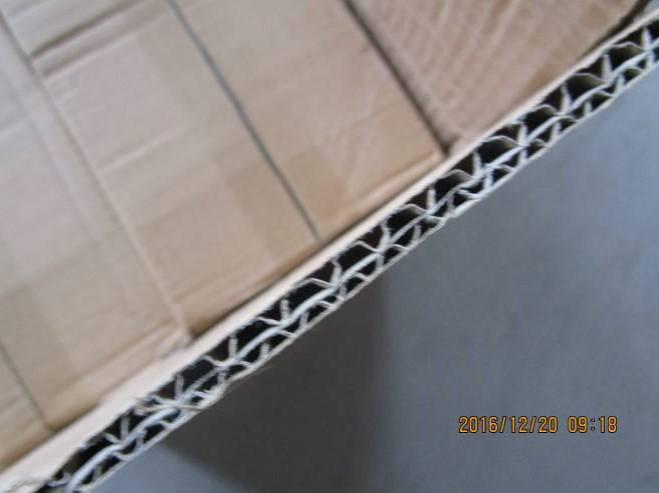

5 layer Outer Box

5 layer Outer Box – maximum weight 15-18 kg

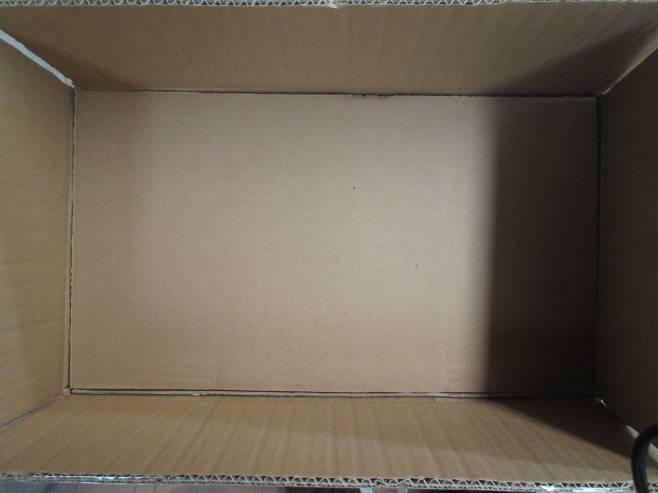

3 layer cardboard

3 layer cardboard – on top and bottom of the goods in innerbox that you don’t cut the goods by opening (cut proof) and also it should be on top and bottom of inside outer box!

Cardboardlayer SHOULD BE ON TOP AND BOTTOM OF INNERBOX; B U T STILL IN OUTERBOX.

you close the innerboxes, then you put cardboard on bottom of empty outerbox, then you put the closed innerboxes in the outerbox, then you put again cardboard layer above the closed innerboxes, then you close the outerbox.

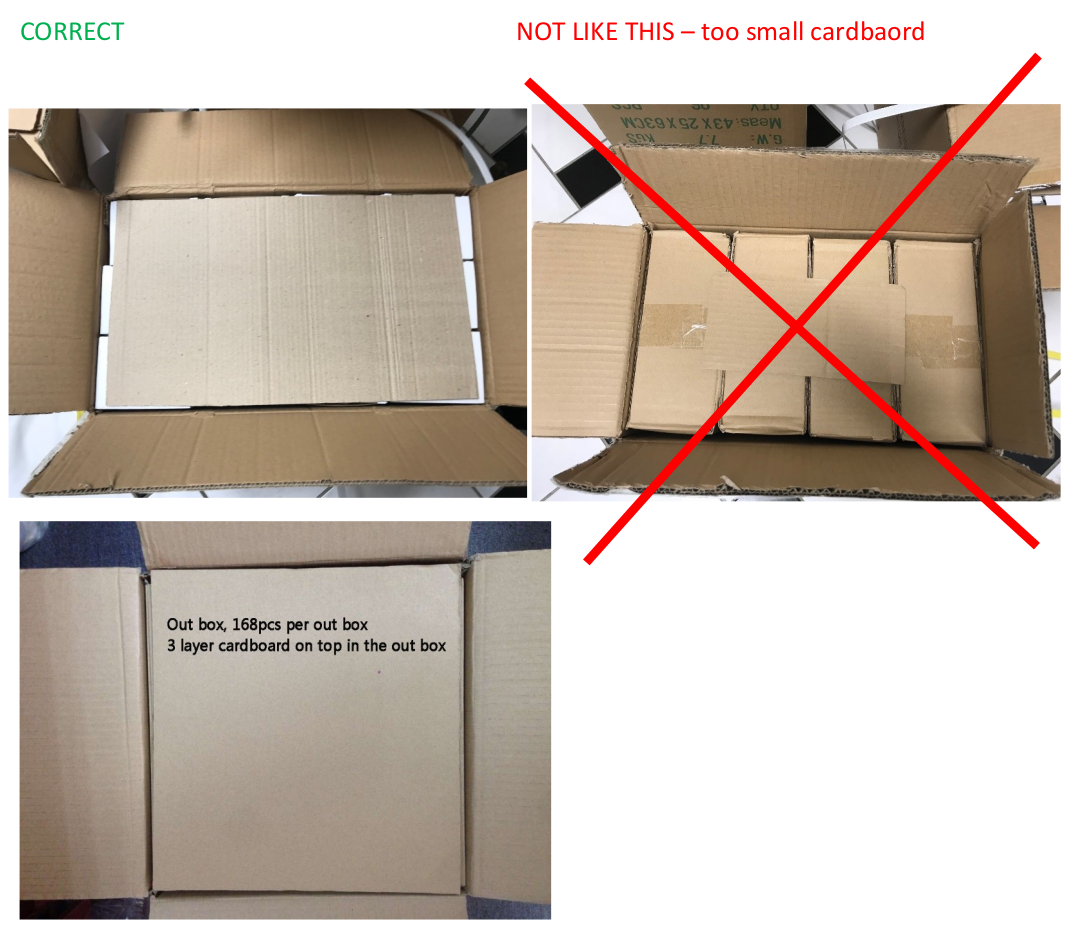

It is important that the export carton is 2cm larger so that the inner cartons + 3 layer cardboards fit into the carton and there should be plain area by closing the export carton – see pics below

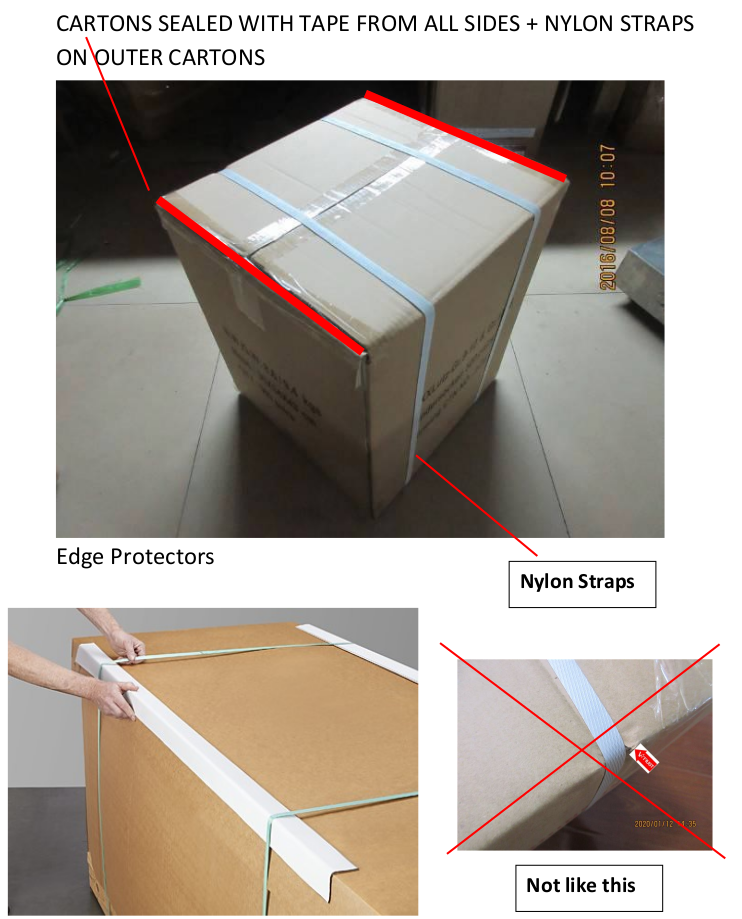

Carton Sealed with Tape

Silica Gel

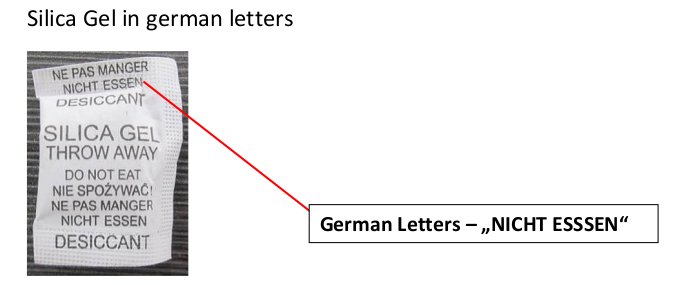

Silica Gel in german letters

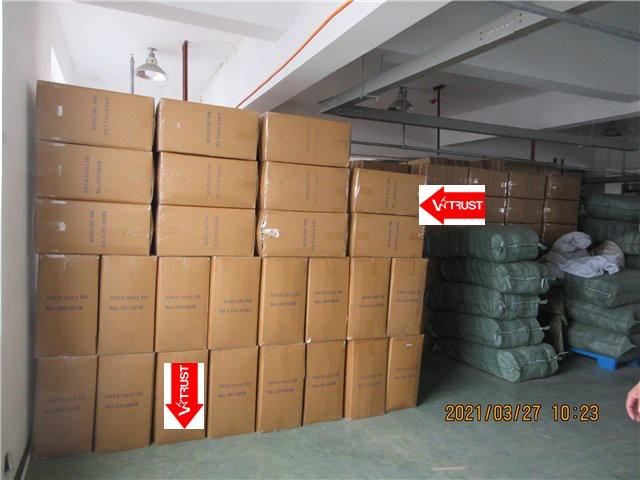

Storage of goods

The goods / cartons / material must NOT be stored outside at any time.
Goods must be protected from rain, sun or bad weather outside. Storage only inside in factory
Dont put Pallet on Pallet. This is really strongly forbidden
Please send pictures from storaging during CNY.
Also the storage must be that all cartons or finished goods stored only on Pallets – not on floor.
Please seal boxes with tape from all sides to avoid moisture.
Warehouse should have max. 60% humidity to avoid mildew.
Store the goods safely against robbery, wetness and dirt

The cartons should not be placed on the floor directly without protection from pallets – not like pic below

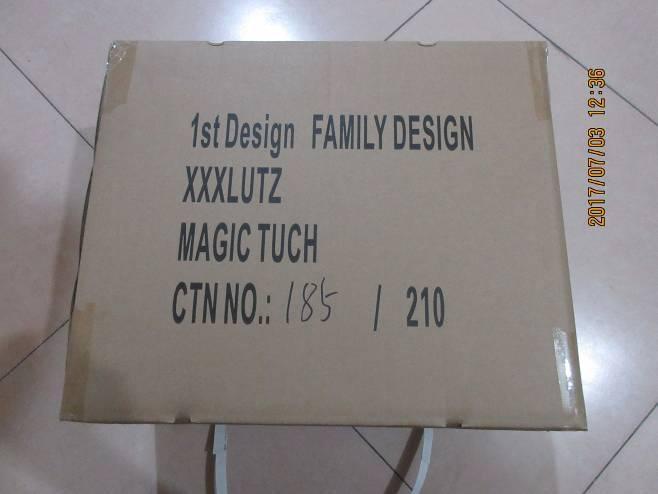

Shipping Marks

If 2 or 3 different designs in same container: different shipping marks in different colors + Put sticker like above beside shipping mark on each design + only running carton numbers beginning from 1 – ….. till end.

Red – XXXLutz
Green – Mömax
Blue – Möbelix

Carton Packing – Check

I have read and understood the instructions.

YesNo

LOADING CHECKLIST

Loading Checklist *

Container

YesNo

No holes, cracks or deformations present in container walls or roof. Container is watertight. Test method: enter container, wipe up any rust (if any), close both doors tightly and look for incoming light (e.g. through cracks, holes, door gaskets, edge of door etc.). The container is suitable to load the goods.

Doors

YesNo

Doors operate properly and closing devices operate properly

Doors closed

YesNo

The doors and (if applicable) roof covering have been carefully closed.

Container interior

YesNo

Container interior is absolutely dry, clean, free of cargo residues and neutral in odor (Old adhesive labels have been removed.). Wipe up any condensation or white frost in order to avoid corrosion and moisture damage to the cargo

container number

YesNo

Same container number present on door and the inside and outside of container.

no steef clips

No steef clips *

(please upload pictures)

no steef clips – Pics *

YesNo

no steef clips of boxes to avoid cartons falling down

	Image *
1
1

Add one more picture

Desiccant Bags

Desiccant Bags *

(please upload pictures)

Desiccant Bags – Pics *

YesNo

5-6 Desiccant Bags on all sides of container

	Image *
1
1

Add one more picture

Transparent foil

Transparent foil *

(please upload pictures)

Transparent foil – Pics *

YesNo

Transparent foil on top of all goods

	Image *
1
1

Add one more picture

Straps/ropes must be fixed

Straps/ropes must be fixed *

(please upload pictures)

straps/ropes-fixed – Pics *

YesNo

If straps/ropes are applied to hold the cargoes, they must be fixed so that it holds in particular the upper Cargoes levels.

	Image *
1
1

Add one more picture

Mesh Net Bag

Mesh Net Bag *

(please upload pictures)

Mesh Net Bag – Pics *

YesNo

Mesh Net Bag inside container at the front door to hold the cartons

	Image *
1
1

Add one more picture

Avoid steep cliffs

YesNo

Steep ‘cliffs’ must be avoided to prevent Cargoes from falling down.

Layer boxes

YesNo

3 layer inner boxes / 5 layer outer boxes

layer carboard

YesNo

3 layer carboard on top and bottom of inner box in outer box

Nylon straps

Nylon straps *

(please upload pictures)

Nylon straps – Pics *

Please insert picture from closed export carton with 2 nylon straps – this picture must be taken from any carton showing in container.

YesNo

Transparent foil on top of all goods

	Image *
1
1

Add one more picture

corner protection

YesNo

There should be corner protection for the sharp corners or protruding part, to avoid damage on contiguous products.

place light item above the heavy items

YesNo

Make sure the light item is placed above the heavy items in the container if applicable.

evenly distributed the weight

YesNo

The weight is evenly distributed in the container.

carefully loading process

YesNo

Products Loading. Cargoes are loaded into the container carefully. Loader can’t throw cartons or trample cartons, and with no risks that any goods will fall down.

Shipping Mark

Shipping Mark *

YesNo

Shipping Mark as confirmed

Shipping Mark – Pics *

Please insert picture from shipping mark – this picture must be taken from any carton showing in container.

	Image *
1
1

Add one more picture

Pics from open export carton

Please insert picture from open export carton where we can see the inner boxes inside the carton and also the item inside these inner boxes. – This picture must be taken from any carton showing in container.

	Image *
1
1

Add one more picture

Only DRY Cartons

YesNo

Only DRY Cartons without any damages

NO goods must be stored outside

YesNo

Further NO goods must be stored outside in open at any time of production, storing or loading

Warehouse Storage Environmental Temperature

YesNo

Warehouse Storage Environmental Temperature – humidity below 70% and all goods stored on wooden pallets. There must be a hygrometer in warehouse.

Defective Goods

How many pcs defective goods on site left after loading? *

(Please upload pictures)

pcs defective goods – Pics *

	Image *
1
1

Add one more picture

Container closed and sealed

Container closed and sealed *

(please upload pictures)

Container closed and sealed – Pics *

YesNo

Container closed and sealed – Please upload picture from sealed container.

	Image *
1
1

Add one more picture

In case of troubles

In case of troubles – URGENT inform Buyer and Container Shipper to exchange Container, but don’t send goods.

FINAL RESULT

ALL POINTS ABOVE CHECKED AND APPROVED without noteable errors

YesNo
